Product Overview
Looking for a takeout hot drink cup that delivers both premium security and a luxurious tactile grip? Our Triple Wall Ripple Paper Cups are the ultimate beverage packaging solution for upscale specialty cafes and beverage franchises. By incorporating a scientifically engineered corrugated pattern into the outer layer, a natural air insulation chamber is created. Consumers can comfortably hold freshly brewed, boiling lattes or hot tea without feeling the heat—completely eliminating the need and cost of separate cardboard sleeves.
Key Features & Craftsmanship
-
Scientific 3-Layer Insulation Structure: Detailed breakdown (as shown in
ripple wall cup details.jpg): The Outer Layer features an engineered corrugated air insulation design for superior heat protection; the Middle Layer utilizes firmly bonded, sturdy Kraft cardboard for high crush resistance; the Inner Layer is made from heavy-weight, food-grade base paper ensuring overall cup rigidity. -
High-Density PE Leakproof Coating: The inner wall is lined with ultra-uniform, food-grade PE (polyethylene) coating to lock in hot liquids. The cup bottom is engineered with heat-resistant technology, guaranteeing zero soaking, softening, or leaking during long-distance delivery.
-
Elegant Rims & Textures: The smoothly rolled rim ensures a perfect, splash-proof seal with standard PP, PS, or paper lids. Available in both vertical and S-wave corrugated textures, offering an ergonomic, anti-slip hold.
Material Structure |
Food-grade Base Paper + Inner PE Coating + Middle Kraft Cardboard + Corrugated Outer Paper |
Texture Options |
S-Wave Ripple / Vertical Line Ripple |
Standard Volume |
4oz - 20oz (Supports OEM dimensions) |
Color & Printing |
Classic Red, Sleek Black, Natural Kraft, or Eco-ink Customized Artwork up to 6 colors |
Matching Accessories |
Recommended to pair with our Eco Bamboo Pulp Trays and matching lids |
Great value & quality Ripple Wall Paper Cup designs customized with your brand.
Choose the sizes and quantities your need!

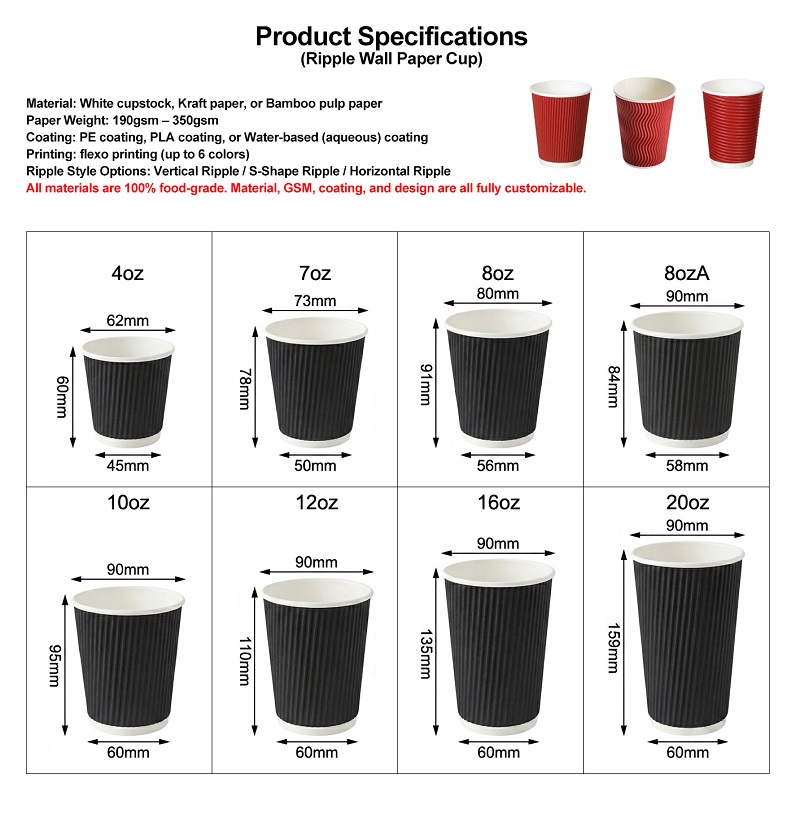

| ITEM NO. |
CUP SIZE TXBXH(mm) |
PAPER WEIGHT |
| 4oz | 62X45X60 | 190sm+18pe+250gsm |
| 7oz | 73X50X78 |
210sm+18pe+250gsm |
|
8oz |
80X56X91 | 280gsm+18pe+250gsm |
| 8oz(A) | 90X58X54 | 280gsm+18pe+250gsm |
|
10oz |
90X60X95 | 300gsm+18pe+250gsm |
|
12oz |
90X60X110 | 300gsm+18pe+250gsm |
|
16oz |
90X60X135 | 320gsm+18pe+250gsm |
| 20oz |
90X60X159 |
320gsm+18pe+250gsm |
